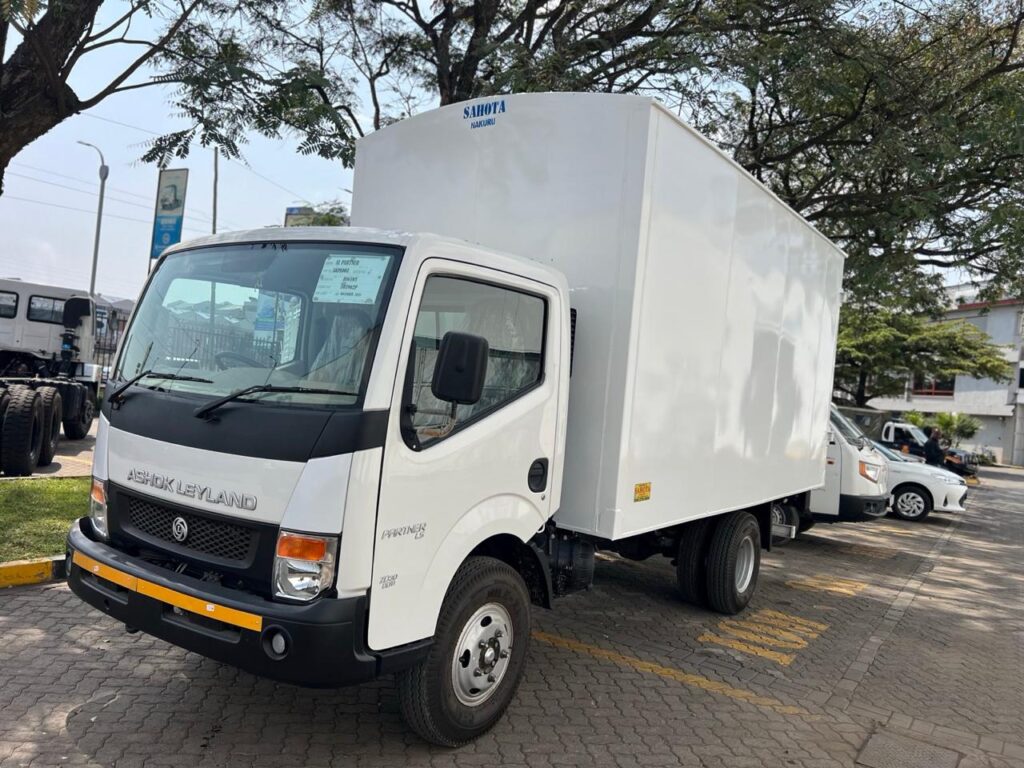

The Ashok Leyland Partner is a versatile, modern light commercial vehicle (LCV) designed for urban and intercity logistics, offering a Gross Vehicle Weight (GVW) ranging from 6.25 to 11.28 tons.
.
| Specifications | |
|---|---|
| ✓ Wheelbase | 3320 mm |
| ✓ Gross Vehicle Weight (GVW) | 7200 kg |
| ✓ Drive Type | 4×2 |
| ✓ Segment | Haulage |
| ✓ Engine | 3L ZD30Ti Common Rail Diesel Engine |
| ✓ Emission Norms | Euro 3 |
| ✓ Engine Power | 118 Hp / 87 kW @ 2750 rpm |
| ✓ Engine Torque | 320 Nm @ 1600–2400 rpm |
| ✓ Displacement | 2953 cc |
| ✓ Clutch | 280 mm dia. single dry plate, diaphragm push type |
| ✓ Gearbox | Fully synchromesh 5-speed – Kinetic |
| ✓ Front Axle | Forged I-section reversed Elliot |
| ✓ Rear Axle | Fully-floating single-speed hypoid (RAR – 5.13:1) |
| ✓ Tyre | 7.50 × 16 – 16PR |
| ✓ Front Suspension | Parabolic, overslung with double acting shock absorbers |
| ✓ Rear Suspension | Semi elliptic, overslung with double acting shock absorbers |
| ✓ Braking System | Vacuum assisted hydraulic brake |
| ✓ Steering System | Power steering |
| ✓ Electrical System | 70 A (1 × 75) Ah |
| ✓ Fuel Tank Capacity | 90 Litres |
